Home > Self Adhesive Insulation Pins >

stainless steel Perforated Base Insulation Pins 62.5MM

Huihao Hardware Mesh Product Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

stainless steel Perforated Base Insulation Pins 62.5MM

  • 1
  • 2

Brand Name : HUIHAO KASITE

Model Number : PB-50

Certification : ISO9001-2015

Place of Origin : CHINA

MOQ : 5000 SETS PERFORATED BASE INSULATION PINS

Payment Terms : L/C, T/T

Supply Ability : 400000 Sets perforated base insulation pins per 30 days

Delivery Time : 7 work days

Packaging Details : carton+pallet with Anti pricking hand package

Name : Perforated Base Insulation Pins

Pin Diameter : 2.7mm

Pin length : 62.5mm

Base size : 50 mm x 50 mm

Material : Stainless steel 316L

Carton size : 30CM X30CM X28CM

Factory : HUIHAO HARDWARE

Other types : PB-24, PB-40

Contact Now

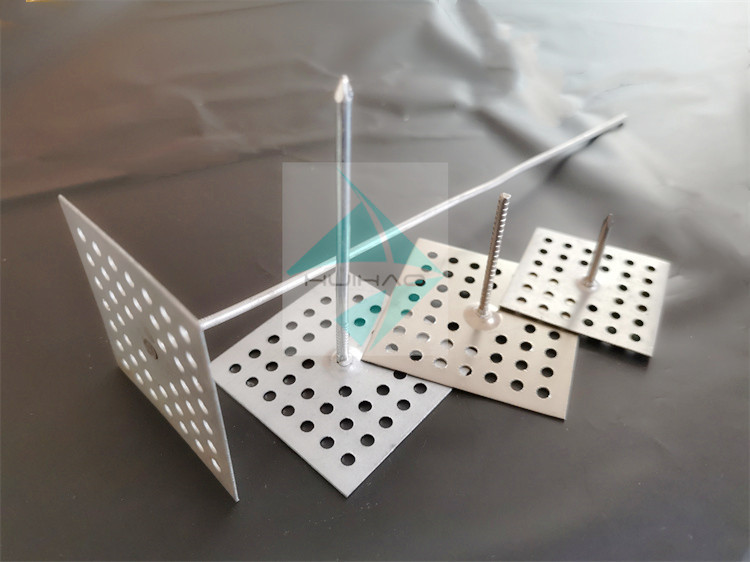

Stainless Steel Perforated Base Insulation Pins 62.5MM

it is one kind of rock wool insulation pin, and the base size can be customized , in common the size is 50mm (2")

Quick Details of perforated base insulation pins

  • 1)Making installation more easier and more convenient, saving time and labor cost.

    2)All size and shape products will be made according to customers' drawings.

    3)Durable material,anti-corrosion and anti-rust. soft nails for easily bending

  • Base size in common: 40mmx40mm, 50mmx50mm

  • Pin diameter: 2mm, 2.5mm, 2.7mm, 3mm and 10ga (3.4mm)

  • Pin length: 15MM-280MM. the common length is 38mm, 63mm, 90mm, 120mm, 140mm, 160mm, 180mm, 203mm, 230mm

  • surface treatment: zinc coated or copper coated for mild steel material



Description details of the perforated base insulation pins

Perforated base insulation pins are all metal fire resistant anchor that is both fast and easy to install.
Perforated base insulation pins is suitable for insulation materials such as mineral wool, EPS, XPS and fibreglass.



Specification details of Perforated base insulation pins

modle

BASE TYPE

SUPPORT NAIL DIA

LENGTH OF NAILS

SQ-50-55

0.5MM X50MM

2.7MM, 3MM

55MM

SQ-50-63

0.5MM X50MM

2.7MM, 3MM

63MM

SQ-50-70

0.5MM X50MM

2.7MM, 3MM

70MM

SQ-50-90

0.5MM X50MM

2.7MM, 3MM

90MM

SQ-50-100

0.5MM X50MM

2.7MM, 3MM

100MM

SQ-50-110

0.5MM X50MM

2.7MM, 3MM

110MM

SQ-50-120

0.5MM X50MM

2.7MM, 3MM

120MM

SQ-50-130

0.5MM X50MM

2.7MM, 3MM

130MM

SQ-50-140

0.5MM X50MM

2.7MM, 3MM

140MM

SQ-50-160

0.5MM X50MM

2.7MM, 3MM

160MM

SQ-50-180

0.5MM X50MM

2.7MM, 3MM

180MM

SQ-50-203

0.5MM X50MM

2.7MM, 3MM

203MM

SQ-50-230

0.5MM X50MM

2.7MM, 3MM

230MM

SQ-50-250

0.5MM X50MM

2.7MM, 3MM

250MM



Features of perforated base insulation pins

  • Can be used to retain any type of insulation (pierced by the insulation fasteners pin)

  • insulation fasteners available for different fixing methods: self adhesive (pressure-sensitive adhesive), or using suitable adhesive

  • One type of pin can be used to hang multiple types of insulation

  • Simple and easy to apply

  • Low-cost assembly

  • Reduced inventory needs

  • Available in stainless steel, galvanised steel, aluminium

stainless steel Perforated Base Insulation Pins 62.5MM

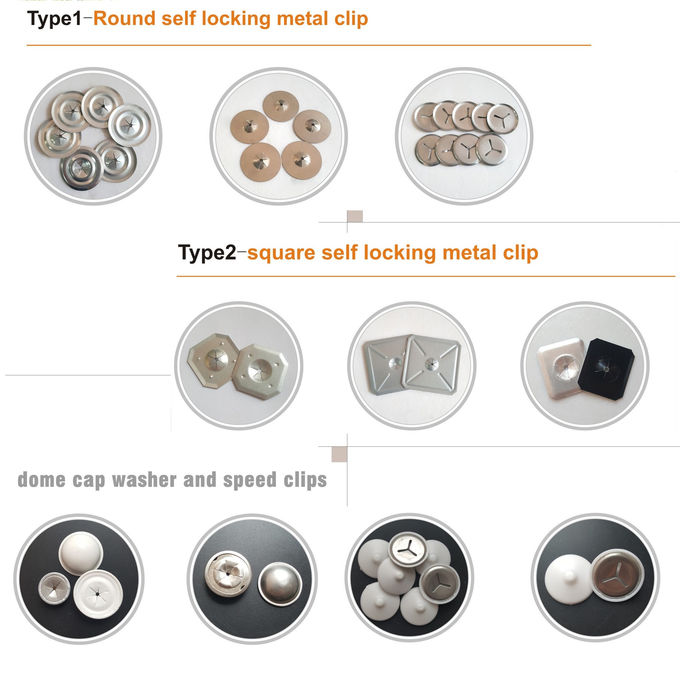

Self locking washers locked with perforated base insulation pins

speed clips type size material center hole diameter surface treatment
round type self locking washer 15mm galvanized steel, stainless steel, aluminum 2.5mm

mild steel:

zinc coated



sttainless steell: polished



aluminum alloy:

Anti-ultraviolet coating black color

round type self locking washer 20mm galvanized steel, stainless steel, aluminum 2mm-3mm
round type self locking washer 25mm galvanized steel, stainless steel, aluminum 2mm-5mm
round type self locking washer 32mm galvanized steel, stainless steel, aluminum 2mm-5mm
round type self locking washer 38mm galvanized steel, stainless steel, aluminum 2mm-5mm
round type self locking washer 50mm galvanized steel, stainless steel, aluminum 3mm-8mm
square type self locking washer 32mmx32mm galvanized steel, stainless steel, aluminum 2.7mm, 3mm
square type self locking washer 29mmx31mm galvanized steel, stainless steel, aluminum 2.5mm,
square type self locking washer 65mmx65mm galvanized steel, stainless steel, aluminum 2.7mm, 3mm

stainless steel Perforated Base Insulation Pins 62.5MM
