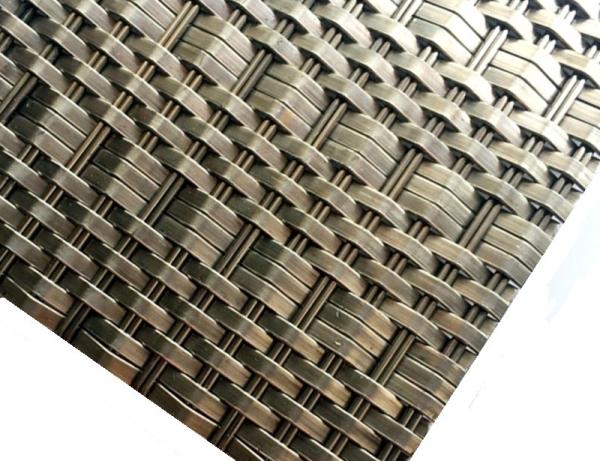

Stainless Steel Woven Wire Fabric , Decorative Architectural rigid Mesh Facade
production details of Stainless Steel Woven Wire Fabric , Decorative Architectural Rigid Mesh Facade
Decorative wire mesh can be specially woven with super quality stainless steel, aluminum alloy, brass, copper or other alloy materials.
Metal wire mesh fabrics are now catching the eyes of modern designers. It is widely used as curtains, screens for dining hall, isolation in
hotels, ceiling decoration, Animal containment and security fencing.With it's versatility, unique texture, variety of colors, durability and flexibility,
metal wire mesh fabric offers a modern decoration style for constructions. When it is used as curtains, it offers a variety of color changes with
light and gives unlimited imagination.
technical data sheet of Stainless Steel Woven Wire Fabric , Decorative Architectural Rigid Mesh Facade
| ITEMS | HH-ZG-3 |
| Material | Stainless Steel | Opening Area | 0% |
| Warp Diameter | 1.5x2mm | Mesh Thickness | 2.5mm |
| Warp Pitch | 9mm | Surface | clean & free oil |
| Weft Diameter | 1x3.5mm | Max Length | 8m |
| Weft Pitch | 3.5mm | Max Width | 4m |
| Weight | 11.71kgs/m2 | Application | cladding |
Stainless Steel Woven Wire Fabric , Decorative Architectural Rigid Mesh Facade Techincal support:
1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.

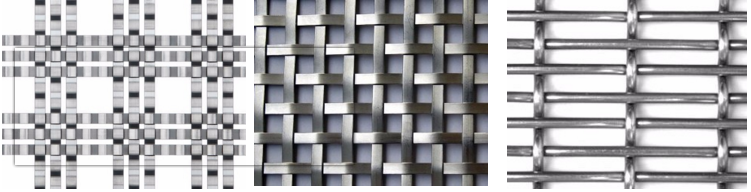

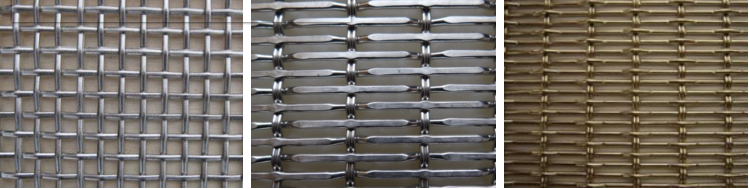

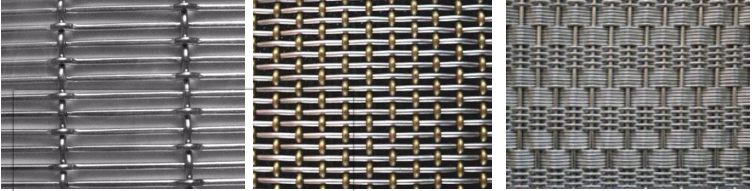

others Specification of Stainless Steel Woven Wire Fabric , Decorative Architectural Rigid Mesh Facade
Material:Stainless Steel304316316L Material:Stainless Steel304316316L Material:Stainless Steel304316316L
Warp diameter:1.2mm*1 Warp diameter:1.2mm*2 Warp diameter:1.2mm*2
Warp pitch:5mm Warp pitch:17.5mm Warp pitch:17.5mm
Weft diameter:1.2mm Weft diameter:2mm Weft diameter:2mm
Weft pitch:5mm Weft pitch:4mm Weft pitch:6mm
Weight:3.66kg/m2 Weight:7.4kg/m2 Weight:5.3kg/m2
Material:Stainless Steel304316316L Material:Stainless Steel304316316L Material:Stainless Steel304316316L
Warp diameter:2.26*3 Warp diameter:1.5mm*6mm Warp Diameter: 3mm
Warp pitch:33mm Warp pitch:12mm Warp Pitch: 50mm
Weft diameter:2.26mm*3 Weft diameter:1.5mm*6mm Weft Diameter: 3mm
Weft pitch:33mm Weft pitch:12mm Weft Pitch: 10mm
Weight:6kg/m2 Weight:12.23kg/m2 Weight:6.8kg/m2
Material:Stainless Steel304316316L Material:Stainless Steel304316316L Material:Stainless Steel304316316L
Warp diameter:2mm*1 Warp diameter:1.35mm Warp diameter:2mm*1
Warp pitch:32mm Warp pitch:2.5mm Warp pitch:8mm
Weft diameter:2mm Weft diameter:1.6mm*1 Weft diameter:1.5mm
Weft pitch:4.5mm Weft pitch:5.4mm Weft pitch:1.5mm
Weight:6.44kg/m2 Weight:7.64kg/m2 Weight:12.7kg/m2
