Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

Brand Name : Huihao

Model Number : Insulation anchor pins

Certification : ISO9001:2008

Place of Origin : China

MOQ : Negotiable

Payment Terms : L/C, T/T, Western Union, paypal

Supply Ability : 10,0000 pcs per week

Delivery Time : 7 work days

Packaging Details : 1. length less than 65mm, 1000 pcs per carton, 64 cartons per pallet. 2.length less than 120mm, 500pcs per carton, 64 cartons per pallet. 3. others to be your requirements.

Product name : insulation fasteners

Material : stainless steel , galvanized steel, aluminum

Application : rock wool insulation material

Key word 1 : insulation anchor pins

key word 2 : insulation hangers

key word 3 : lacing anchor

Key word 4 : insulation CD weld pins

Key word 5 : cup head weld pins

Contact Now

Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool


Common size and usages of Insulation anchor pins :
1 - 5/8": Used for 1-1/2" .75# Fiberglass Duct Wrap
2 - 1/2": Used for 2" Fiberglass Rigid Board / Foam Board
4 - 1/2": Used for 4" Fiberglass Rigid Board / R-13
6 - 1/2": Used for R-19 Fiberglass Batt Insulation
9 - 1/2": Used for R-30 Fiberglass Batt Insulation
12 - 1/2": Used for R-38 Fiberglass Batt Insulation


Introduction of insulation anchors pins

Huihao is a insulation fasteners/insulation anchors manufacturing company, we produce all

kinds of insulation pins and washers. Our products includes CD weld pins, Cup head weld
pins, perforated base pins, self adhesive pins, Lacing Anchors, Quilting pins, all kinds of self
locking washers, Dome caps

Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool
Detail of the insulation anchor pins

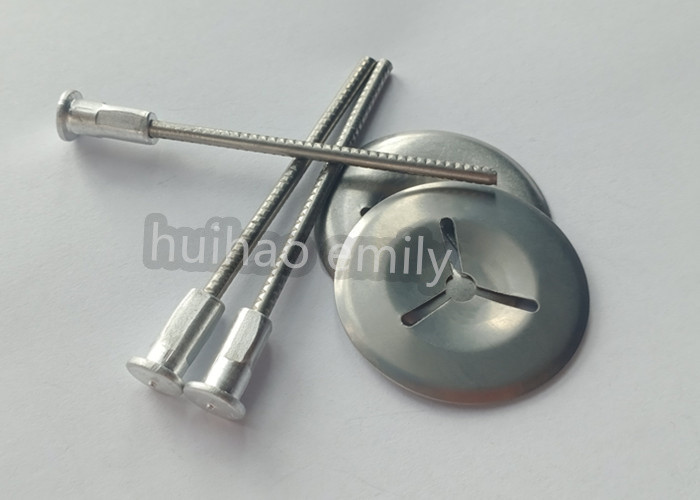

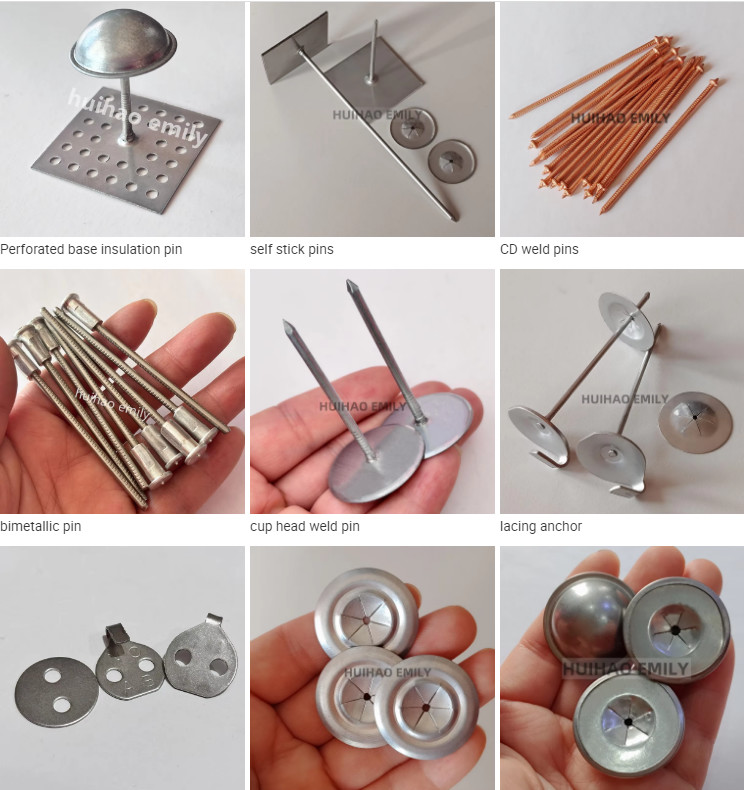

Photos of insulation anchor pins

Specification of insulation anchor pins

Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

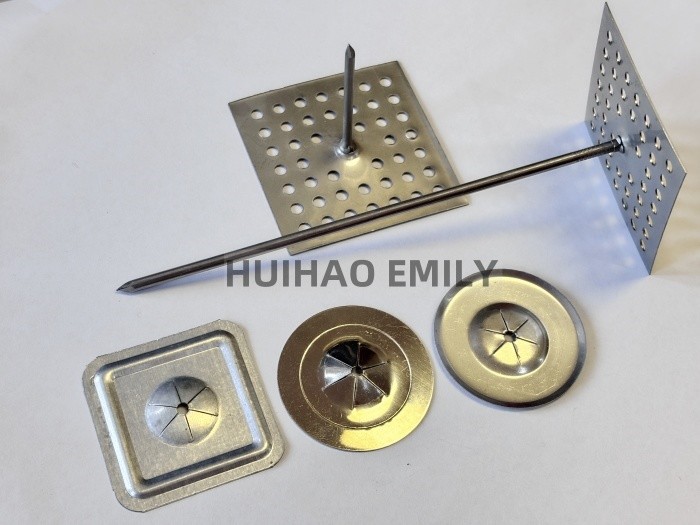

Product name :perforated base insulation anchor pins
Material :stainless steel ,galvanized steel ,aluminum
Base size :50mmx50mm,40mmx40mm,
35mmx35mm,24mmx24mm
Pin diameter:2.7mm,3.0mm in common,other to be request
Pin length :25mm-300mm


Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

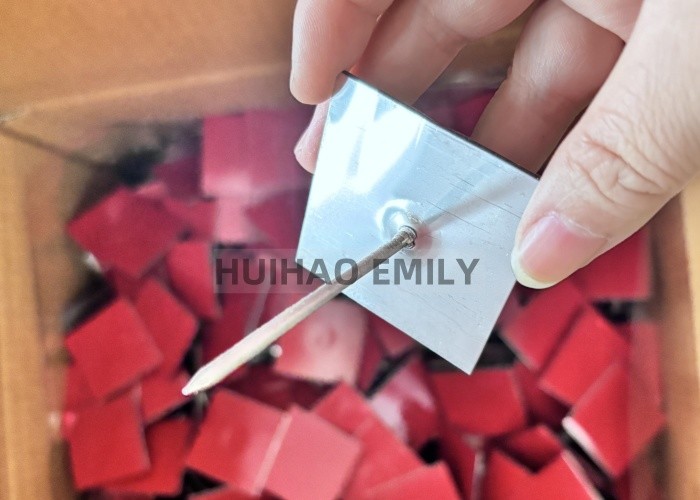

Product name :self stick pins
Material :stainless steel ,galvanized steel ,aluminum
Base size :50mmx50mm,40mmx40mm,
35mmx35mm,24mmx24mm
Pin diameter:2.7mm,3.0mm in common,other to be request
Pin length :25mm-300mm


Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

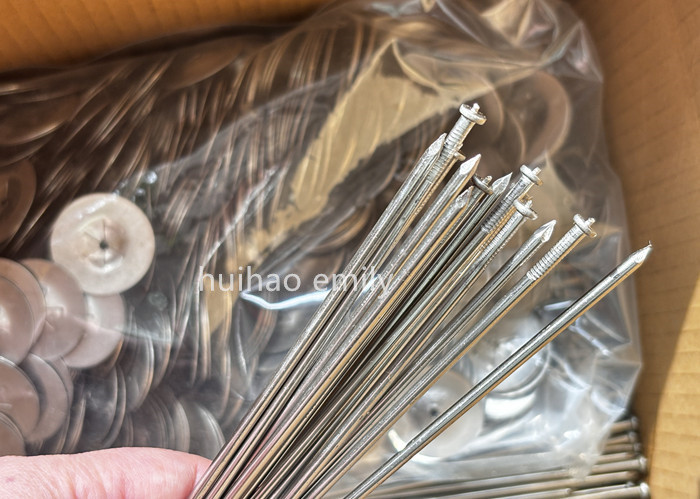

Product name :CD weld pins
Material :stainless steel ,galvanized steel ,aluminum
Pin diameter:1mm-5mm
Pin length :10mm-500mm

Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

Product name :bimetallic pins
Base material :aluminum alloy
Base size:6X15mm
Pin material:copper coated ,zinc plate
stainless steel
Pin diameter:2.7mm,3.0mm in common
Pin length :45mm-300mm




Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

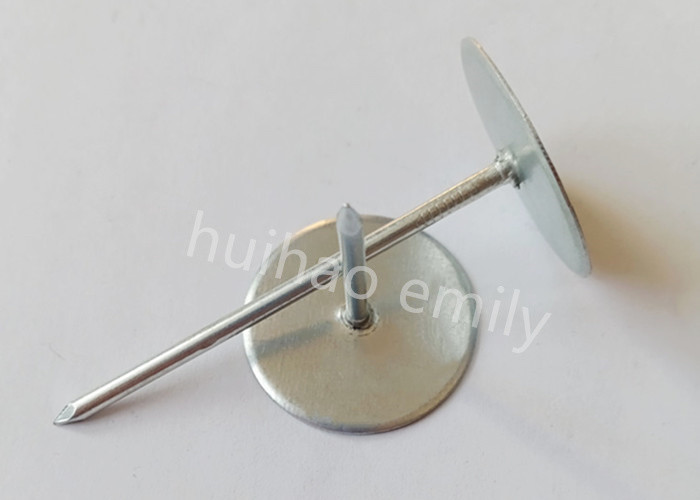

Product name :Cup head weld pins
Material :galvanized steel
Base size :25mm,30mm
Pin diameter:2.7mm,3.0mm,3.4mm
Pin length:25mm-300mm

Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

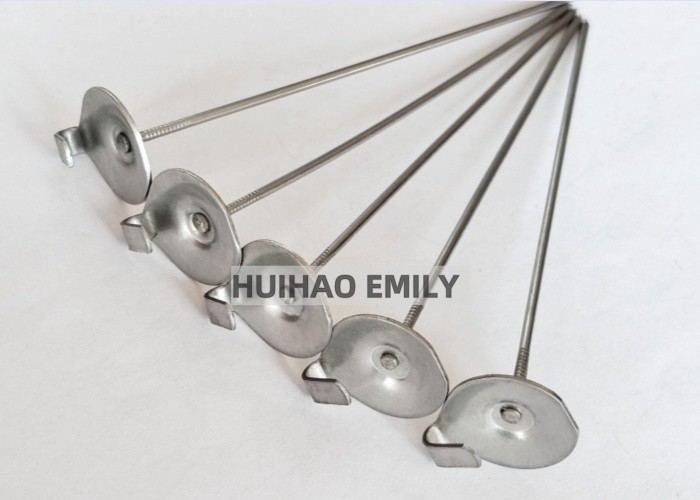

Product name :lacing anchor
Material :stainless steel ,galvanized steel
Base size:22mm
Hook size:5mmx11mm
Pin diameter:2.7mm,3.0mm
Pin length:25mm-300mm






Advantages of the Ducting Accessories Insulation anchor Pins and Hardware
· Suitable for all kinds of wall
· High pull-off strength for a higher security of the system
· Low thermal conduction addition value to avoid thermal bridge
· Galvanized layer on the steel nail to protect the nail from alkali



Accessories of insulation anchor pins



Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

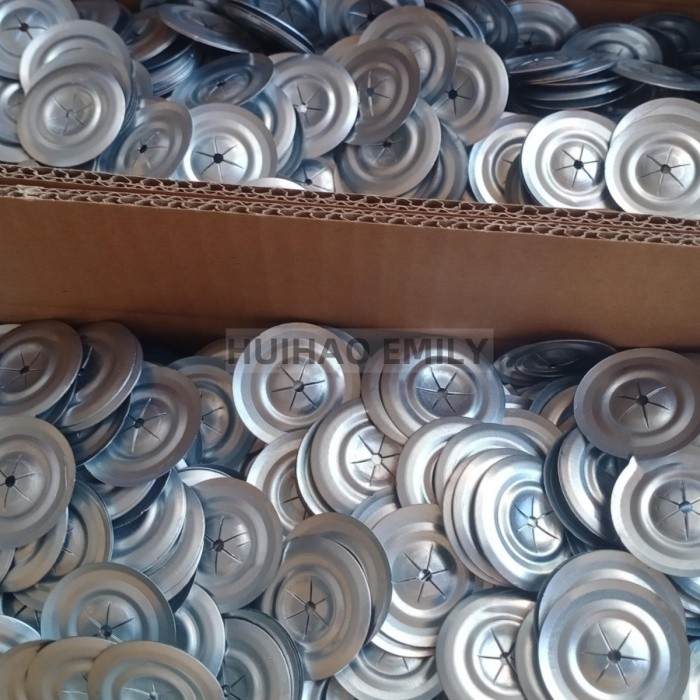

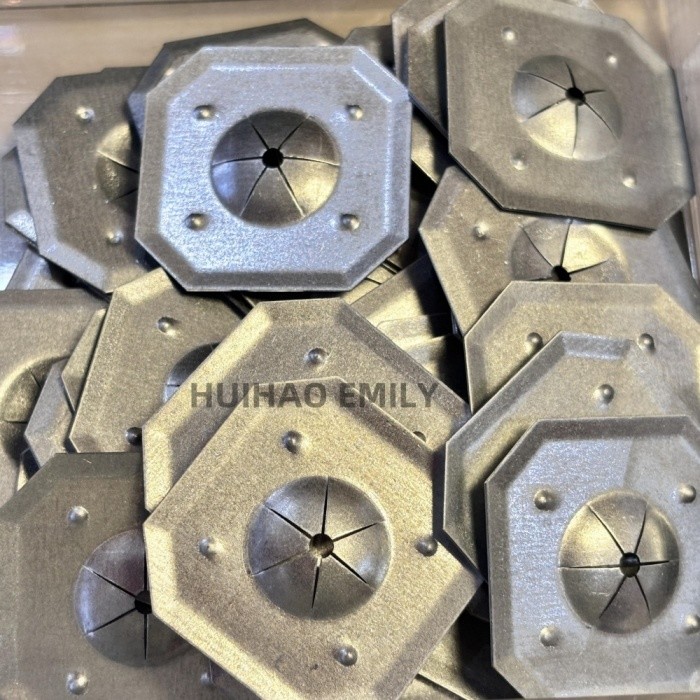

Round self locking washer Square self locking washer
Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

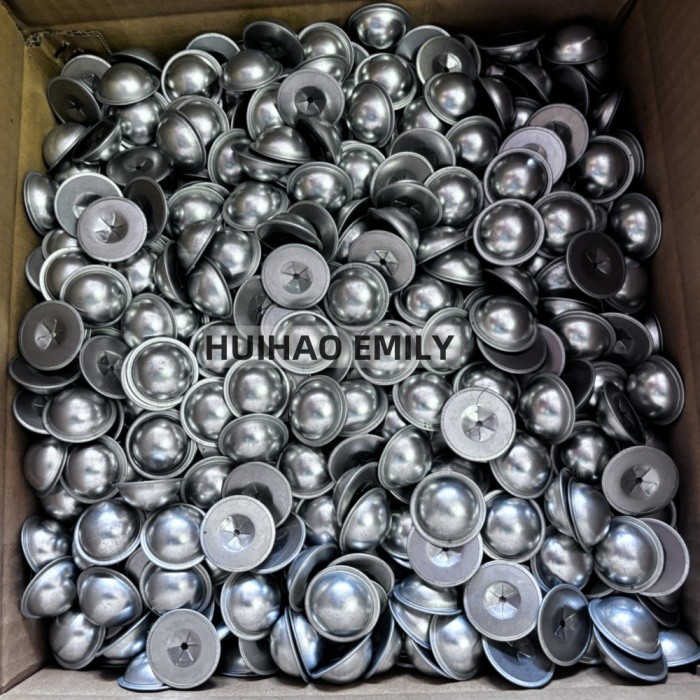

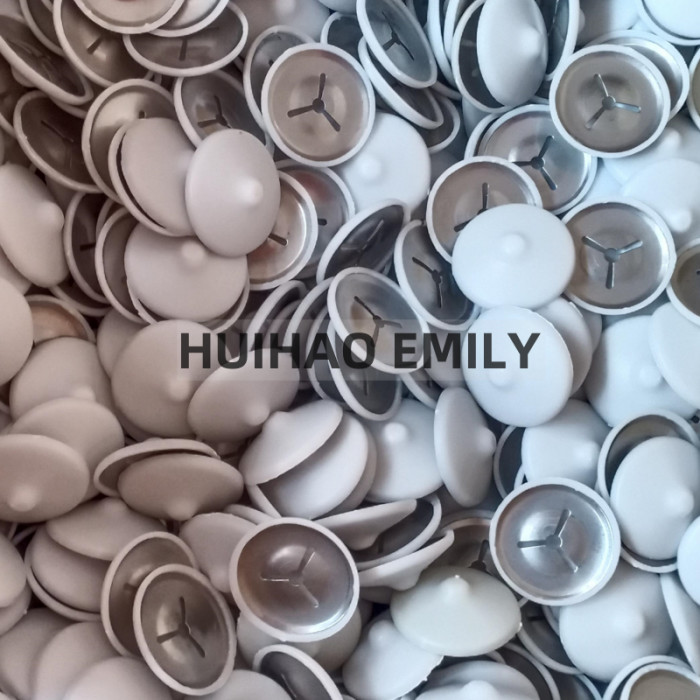

Metal dome cap washer  PE+metal dome cap washer
