Galvanized Self Adhesive Insulation Pins Use for Air Conditioner
Quick details of Galvanized Self Adhesive Insulation Pins
Name:self adhesive insulation pins,self stick pins,self stick insulation pins
Pin plating: galvanized costing is standard. yellow white and blue gal are available
Washers: self-locking washers are available in a variety of sizes, shapes and materials
Usage: Exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and
rock-wool in soundproofing works, and for the duct-lining
advantages
- ·Suitable for all kinds of wall
- ·High pull-off strength for a higher security of the system
- ·Low thermal conduction addition value to avoid thermal bridge
- ·Galvanized layer on the steel nail to protect the nail from alkali

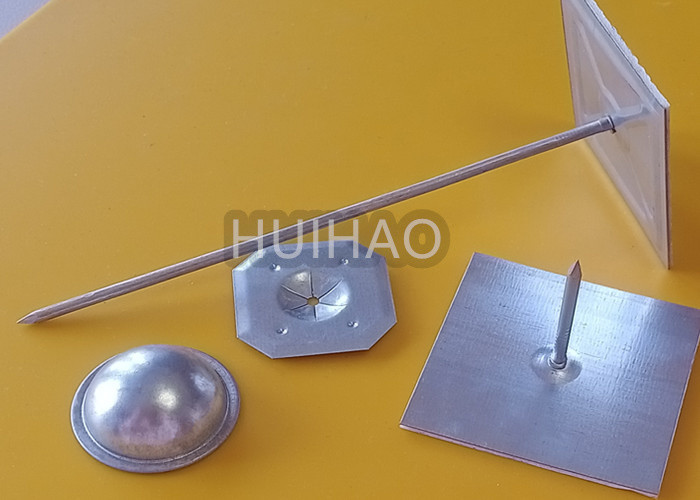

Pic of Galvanized Self Adhesive Insulation Pins
Self Adhesive Insulation Pins CAUTION:
The user is responsible for determining the suitability of the application. Hangers must be applied
to a clean, dry, non-porous surface that is free of all oil, films, dust, rust, etc. Self-adhering hangers
are not recommended for concrete or painted surfaces. It is important that they not be used where
operating temperatures can exceed 150° F at the point of adhesion. Hangers should not be used on
ceilings or roofs of metal buildings or any surface
the reverse side of which may be exposed to heat concentration from sunlight, etc., direct or otherwise.
Load per anchor should not exceed 3 lbs.
Self Adhesive Insulation Pins APPLICATION:
Best results are obtained when ambient temperature is above 40° F at the time of application. Remove
the release paper from the base plate and apply hanger to a suitable flat surface. A firm straight, forward
pressure should be used. Do not twist. Due to the quick-tack nature of the adhesive, it is very important
that the release paper not be
removed until ready to apply the hanger. Insulation may be applied immediately after properly securing
the hanger. Hangers should be stored at 75° F and 50% relative humidity. It is important that stock be
rotated. Shelf life is estimated at 2 years if stored as recommended.
WIPE SURFACE CLEAN.Anchor should be applied to a clean, dry non-porous surface
PEEL OFF RELEASE BACKING.NOTE: Double faced foam tape has a one-year active shelf life
STICK ANCHOR IN PLACE.Select location before contact with surface.Press firmly
APPLY FIRM PRESSURE.20 pounds of pressure should be applied all around the base of the anchor
ALLOW TO STAND 15-20 MINUTES.This will permit better adhesion to take place
Package of Self Adhesive Insulation Pins :
