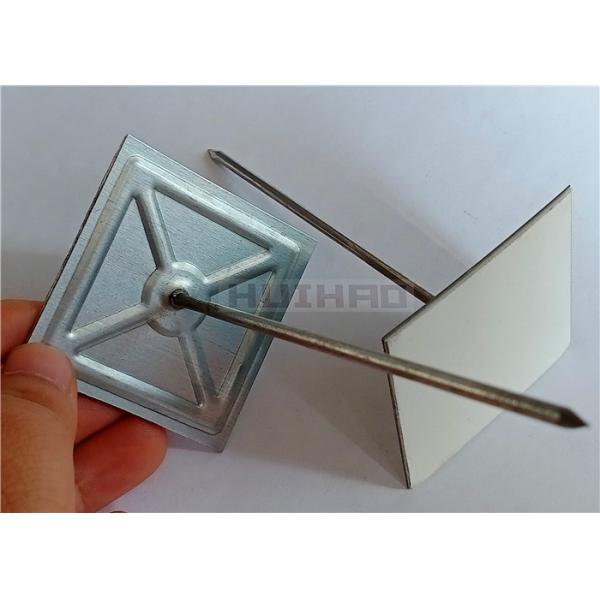

Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2" For HVAC System
Product Description Of Self Adhesive Insulation Pins Aluminium:
Self-adhesive pins are designed for fixing insulation materials to smooth surfaces, such as air ducts, attenuators, chambers and enclosures etc. without using any additional tools. It could be used to fix rigid or flexible insulation materials such as glass wool, rock wool, polyethylene foam, insulation cork boards, etc.
Huihao Hardware Mesh Product Limited is a professional manufacture of insulation pins and washers, we choose high quality raw materials, have automatic production line and strict quality control system, to make sure the quality of our insulation pins and washers. For the insulation pins and washers, the material, the size, the type, the package etc. all is customizable according to your special need.
If you are in need of insulaiton pins or washers, please feel free to ask me a price or sample, and my email is cherry@huihaomesh.com
HUIHAO Self Adhesive Insulation Pins Aluminum
| Pin diameter | Base size | Pin length | Clips Size |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 1'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 2'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 2 1 / 2'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 3 1 / 2'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 4'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 5 1 / 2'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 8'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| For self adhesive insulation pins, the base size, the pin dia, the pin length, the self locking washer size, all is customizable. |
Advantages Of Self Adhesive Insulation Pins Aluminium:
1. Environmentally-friendly
2. Light, dust free, fire retardant and easy to install
3. Heat reflection, heat insulation, sound insulation, counter radiation, counter vibration and shielding
4. During Summer: moisture barrier, sun protection, waterproof, energy saving consumed by cool air conditioning
5. During Winter: heat protection, remarkable energy saving consumed by warm air conditioning
Application Of Self Adhesive Insulation Pins Aluminium:

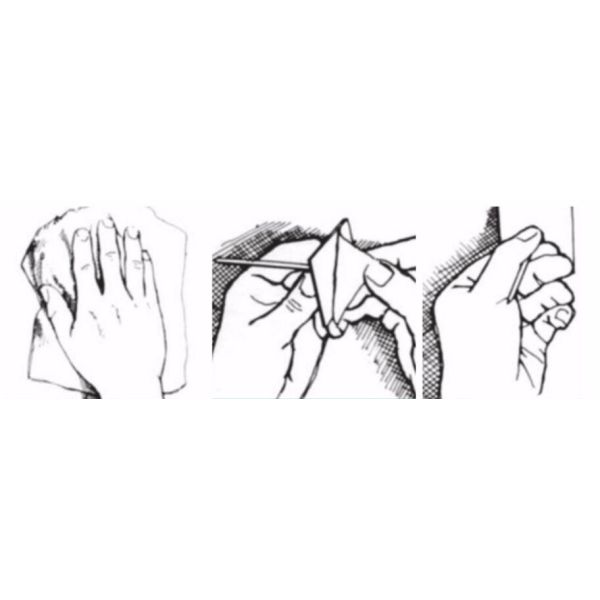

| * Surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.
* Remove the protective release paper taking care not to touch the adhesive.

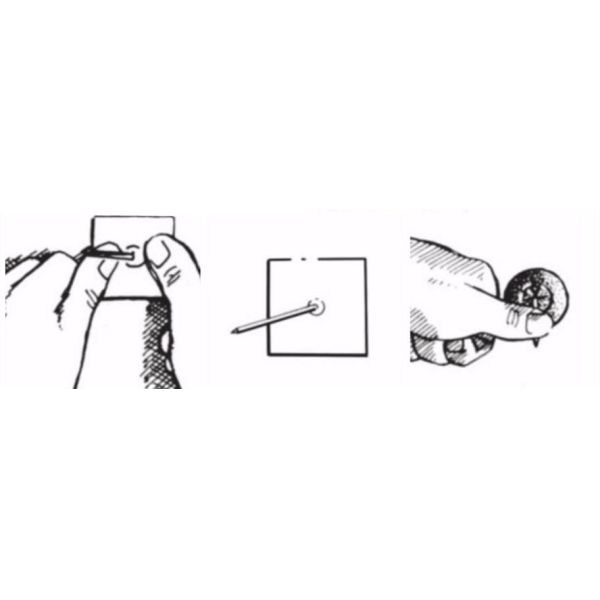

* Place the nail in the required position and press the base against the surface to be insulated
* Insulation can be impaled immediately and firmly locked with self locking washers, but maximum strength of adherence is achieved after 24 hours.
* If necessary, cover the nail with a protective cap. |
  |
Packaging Of Self Adhesive Insulation Pins Aluminium:
The default packaging way is bulk packing or small boxes packing in cartons then on pallets.
We can assist you in determining the most effective packaging style, material, and size for your unique products or as your requirement.
